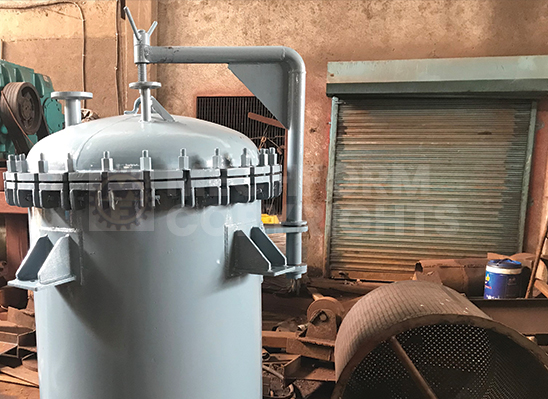

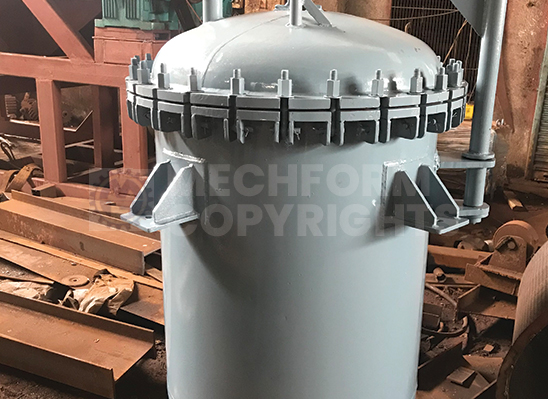

Basket Filter
Basket filters permits the filtering of a wide variety of fluids and retains solid components of almost any size. They provide inexpensive protection of costly machine parts like valves, pumps, bearings, burners, condensers and spray nozzles, and other similar mechanical equipment.These Basket type Filters can be equipped with Bolted Covers, Hinged Covers, Clamped Covers, a Davit Lifting Device or other Lifting Devices to make removal of large heavy covers safe and efficient. All baskets are easily removable and easy to clean.
Features and benefits
- Large-area, heavy–duty baskets.
- Easy to clean.
- Filtration rating available from 5 micron to 2000 micron & more.
- High pressure rating design available.
- Customized design available.
- MS, or stainless steel (304 Or 316) housing.
- Jacketed systemsare available for high temperature applications.
- High temperature & high pressure design are available.
- Davit Arm and Quick Opening type Designs are also available.
Technical Specification
Sizes- 1” Line Size To 24” Line Size & More
- Capacity: Up to 2000 m3 /hr & More
- SS 316L
- SS 316
- SS 304
- MS
- Matt finish
- Mirror finish
- Redoxide painted
- NPT / BSP Threaded
- Flanged Table E / Table F
- ANSI B 16.5 Flanged
