Ribbon Blender

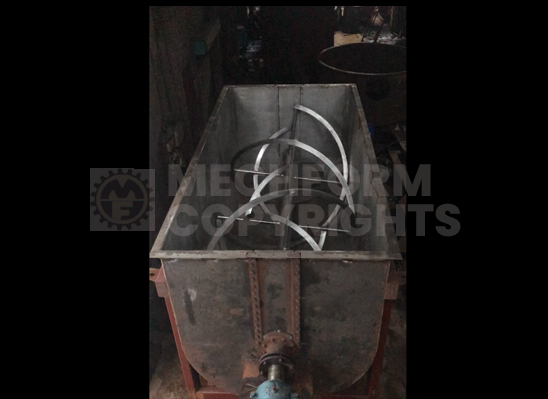

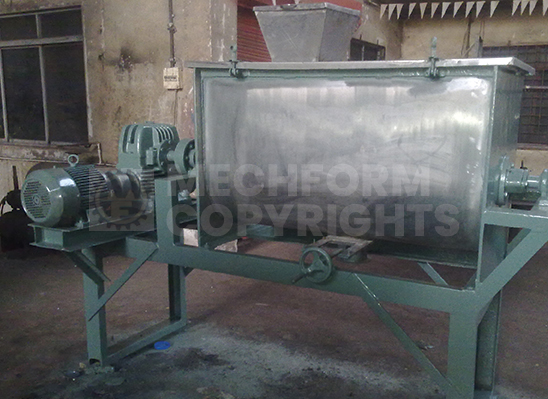

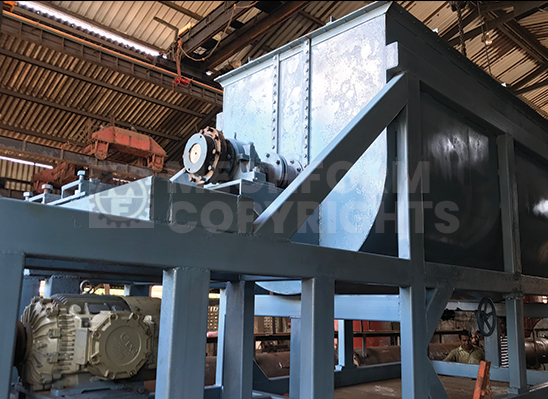

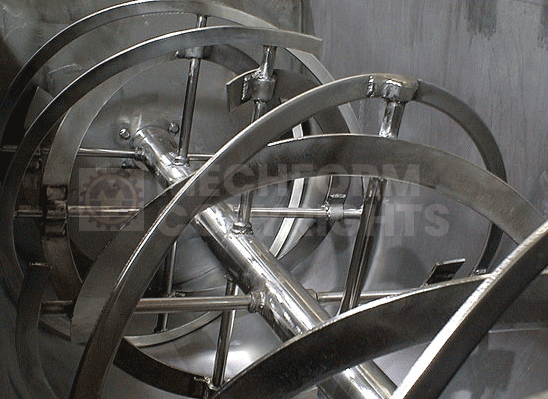

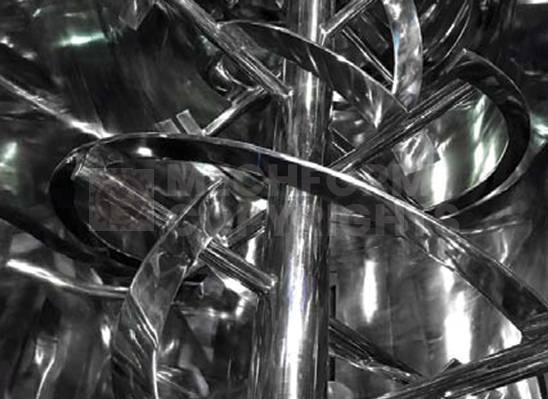

Ribbon Blender is an industrial mixing machine used for mixing solids and solid-liquid ingredients. It can be used in combination of heating cooling and drying.It consist basically, of a trough-shaped shell (usually 2 to 3 times longer than it's width) with a semicircular bottom, fitted with a horizontal longitudinal shaft on which are mounted arms supporting a combination of ribbon blades, paddles or helical screws set at a fairly close clearance to the semicircular mixer body so that no layer of material remains on the bottom of the ribbon mixer. The most effective design of ribbon layout is the double spiral in which the outer ribbon moves the product in one direction and the inner ribbon moves it in the opposite direction
