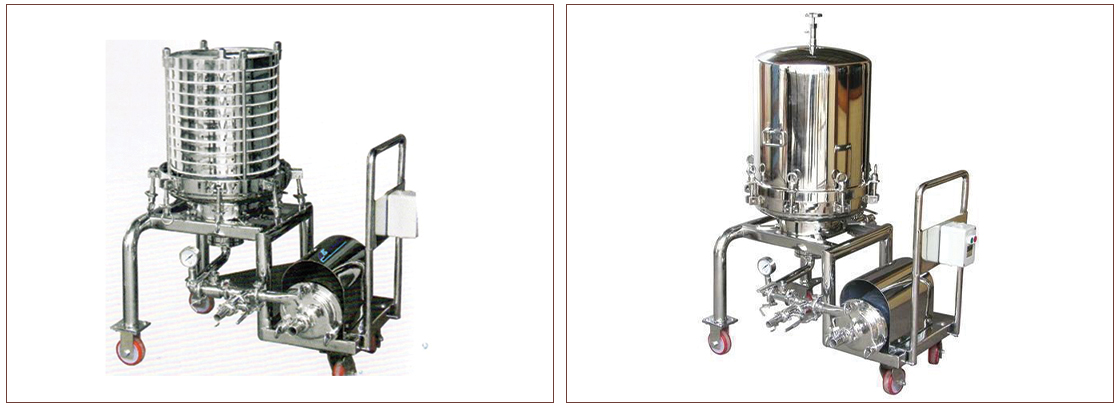

Sparkler hold up Filter
The horizontalhold up sparkler type filter is the most versatile filtaration system for solid liquid separation. It can also be used apart from filtration with the help of filter aids for giving a sparking effect to the liquids filtered. The filters are most suited for the filtration of product for the pharmaceutical,chemical,distillery,beverage,ink,oil and other allied industries. It is available in different output capacities with a variety of pumps to suit individual requirements.
Operation :
The unfiltered liquid is fed into the filter under positive pressure, where liquid travels in upwards direction and finds its way through opening on sides of the Filter Plates. As the liquid pressure increases, the Filter media holds the foreign particles and allows only clear filtrate to pass through the central channel formed by interlocking pressure cups to the outlet. Filtration is continued until the cake holding capacity of the unit is reached or until the filtrate rate becomes too slow owing to cake resistance.
Features:
- Horizontal Plate Filter Press is enclosed construction, preventing evaporation, oxidation, leakage and fumes escaping from product.
- The horizontal filter plate and even thickness of cake, prevents the cake dropping as well as cracking, thus assuring better filtrate quality.
- The Filtration area and cake holding capacity can be increased or decreased according to requirement.
- The filter are provided with gear/centrifugal/lobe pumps fitted with mechanical seal as per requirements
- Optionally available with steam jacket for heating of liquids at the time of filteration.
- The complete constructions is as per GMP specifications.
