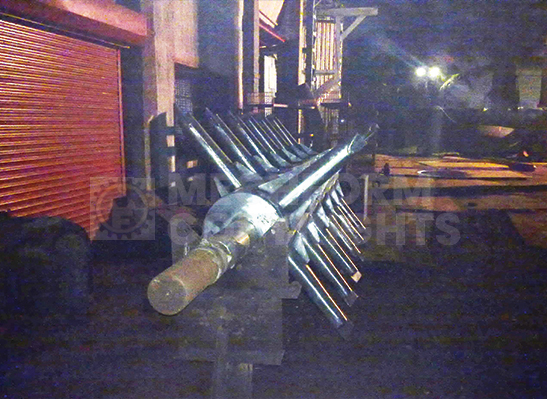

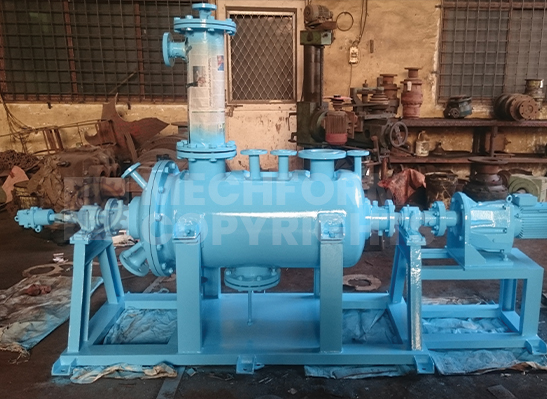

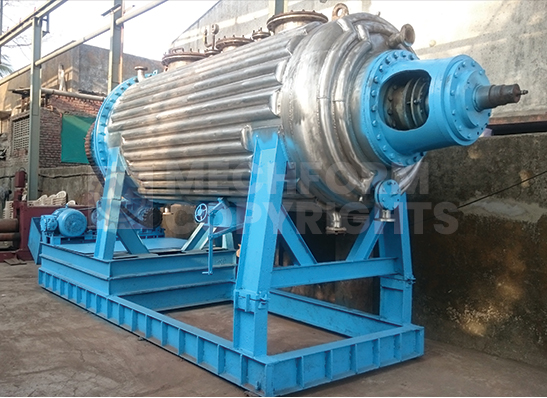

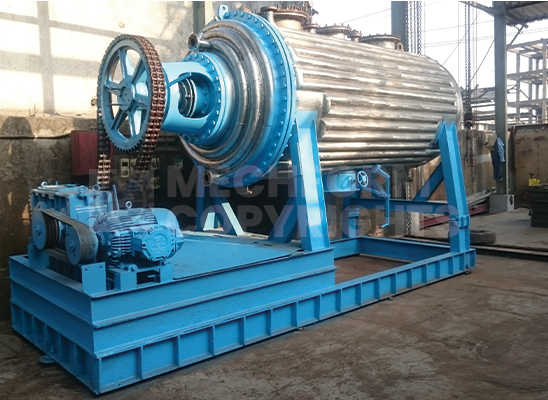

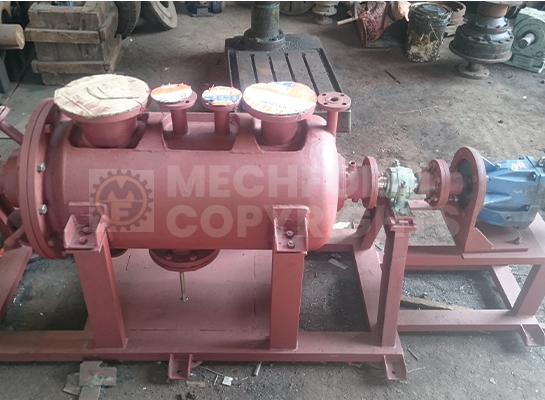

Rotary Vacuum Paddle Dryer is a jacketed cylindrical horizontal vessel with a large diameter hollow shaft. Attached to the shaft are paddles provided with specially designed scraper blades, which scrape the entire internal surface of the Dryer and continuously move and rotate the material thereby precluding the possibility of material remaining in contact with hot surfaces for protracted periods of time.
Useful for pharmaceutical, dyes/dye intermediates, inorganic chemicals, temperature sensitive materials, plastics, agrochemicals, organic chemicals etc.
Additional Features
- Jacket can be provided in lieu of limpet coil,
- Hollow shaft and hollow paddles can be provided.
- The jacket and hollow shaft with paddles can be heated with hot water, steam or any other thermal fluid capable of providing a large indirect heat transfer area.
- If required, cooling can be also be done by cold water, brine or any other refrigerant through the jacket and hollow shaft.
- Vaccum Dust collector system with bag filter to arrest valuable product
- Recovery system for solvents with condenser and reciever
